Umshini Wokubumba Osebenza Kakhulu we-EPS Vacuum Block

Incazelo emfushane:

1. Umshini onesakhiwo esiqinile.
2. Sebenzisa i-PLC nokulawula isikrini sokuthinta, sebenzisa ngokuzenzakalelayo.
3. Faka i-hopper eqinile.
4. Ivacuum ephezulu esebenza kahle yokwenza imikhiqizo yekhwalithi enhle.
5. Sebenzisa ulimi lokusebenza oluhlukile, okulula ukulusebenza kubasebenzi.
6. Sebenzisa isistimu yokudlulisa nesisindo esizenzakalelayo.
7. Sebenzisa izingxenye ezinhle zekhwalithi.
8. Kuyafaneleka ukwenza kokubili imikhiqizo ephansi kanye ne-high density.


Imininingwane Yomkhiqizo

FAQ

Omaka bomkhiqizo

Izici Eziyinhloko

1. Umshini wenziwe ngepayipi lamandla aphezulu kanye nepuleti yensimbi, yonke insimbi ingaphansi kokwelashwa kokushisa, ukuqhuma kwesihlabathi, ukufafaza umdwebo we-antirust, ukukhulisa amandla, hhayi ukugqwala, ukuqinisekisa ukuthi ukusebenza komshini kuzinzile nempilo ende yesevisi.

2. Umshini usebenzisa ubuchwepheshe obuthuthukisiwe bokucutshungulwa kanye nomklamo wesakhiwo samapayipi ongcono, okwenza ngcono kakhulu ukusebenza kahle kokukhiqiza.

3. Umshini usebenzisa inqubo yokushisa eyingqayizivele kanye ne-vacuum esebenza kahle enesistimu yokujiya, inamandla anamandla okungena kwesitimu kanye nomklamo wokonga.Amabhulokhi akhiqiziwe anokubambisana okuhle kakhulu, umswakama ophansi, ukuqinisekisa ukuthi wonke amakhasimende ayanelisa.

4. I-Adopt PLC kanye nesistimu yokulawula isikrini esithintwayo, efakwe inzwa yezinga lezinto ezibonakalayo ingakwazi ukubona ukulawula okuzenzakalelayo kokuphakelayo, ifakwe isikhathi sokupholisa senzwa yokucindezela kwegwebu ngokuzenzakalelayo.

5. Umshini usebenzisa ikhwalithi enhle kagesi, izingxenye ze-pneumatic, ama-valve nezinye izingxenye.Futhi izingxenye nge standard international, ngakho ikhasimende kulula ukuthola esikhundleni endaweni.

6. Umshini wamukela i-hydraulic pressure station ukuze ube uhlelo lokulawula isikhungo.Sebenzisa umnyango ovulekile we-hydraulic, i-ejector de-mold nokukhiya, qinisekisa ukuthi umshini usebenza kahle, ukusebenza okuzinzile.



Idatha Yezobuchwepheshe

Into  I-PSB200TZ I-PSB300TZ I-PSB400TZ I-PSB600TZ
Usayizi we-Mold Cavity mm 2040*1240*1030 3060*1240*1030 4080*1240

*1030

6100*1240*1030
Vimba usayizi mm 2000*1200*1000 3000*1200*1000 4000*1200

*1000

6000*1200*1000
I-Steam Ukungena I-DN50 I-DN50 I-DN150 I-DN150
Ukusetshenziswa 30-50kg/umjikelezo 50-70kg/umjikelezo 60-90kg/umjikelezo 100-130

kg/umjikelezo

Ingcindezi 0.8MPa 0.8MPa 0.8MPa 0.8MPa
Umoya Ocindezelwe Ukungena I-DN40 I-DN40 I-DN50 I-DN50
Ukusetshenziswa 1.5-2m3/umjikelezo 1.8-2.2m3/umjikelezo 2-2.5m3/umjikelezo 2-3m3/umjikelezo
Ingcindezi 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Vacuum Ukupholisa Amanzi Ukungena I-DN40 I-DN40 I-DN40 I-DN40
Ukusetshenziswa 0.2-0.4m3/umjikelezo 0.4-0.6m3/umjikelezo 0.6-0.8m3/umjikelezo 0.8-1m3/umjikelezo
Ingcindezi 0.2-0.4MPa 0.2-0.4MPa 0.2-0.4MPa 0.2-0.4MPa
Ukukhipha amanzi Vacuum drain Φ100mm Φ125mm Φ125mm Φ125mm
I-steam Φ100mm Φ125mm Φ150mm Φ150mm
I-Condensate Φ100mm Φ125mm Φ150mm Φ150mm
Indawo yokukhipha umoya Φ100mm Φ100mm Φ150mm Φ150mm
Okokusebenza 15kg/m3 4min/umjikelezo 6min/umjikelezo 7min/umjikelezo 8min/umjikelezo
Amandla   19.75-24.5Kw 20.5-24.5Kw 24.5-35.5Kw 24.5-35.5Kw
I-Dimension Ephelele L*W*H(mm) 5700*4000* 2800 7200*4500*3000 11000*4500

*3000

12600*4500

* 3100

Isisindo   5000kg 6500kg 10000kg 14000kg
Kudingeka Ubude Begumbi   6000mm 6000mm 6000mm 6000mm

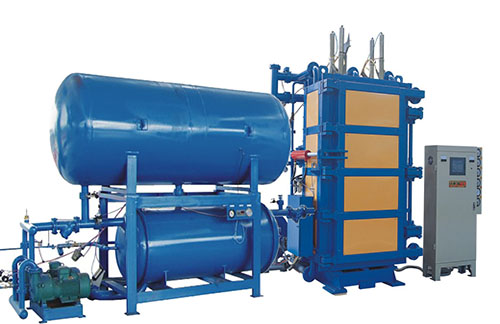

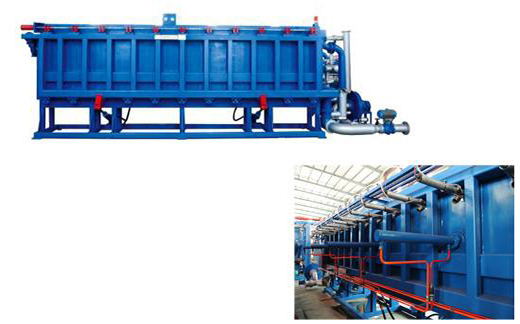

EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine

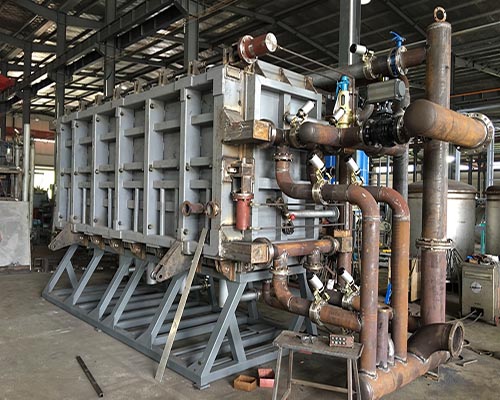

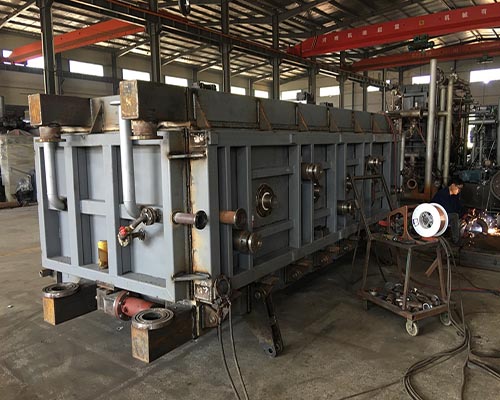

EPS Block Machine In Workshop

EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine

Isitsha Sokulayisha Umshini We-EPS Vimba

EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine

Imikhiqizo ye-EPS

EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine

Ukuphawula

Imishini engenhla inemodeli ye-TF ne-TZ

Uhlobo lwe-TF wuhlobo lokupholisa umoya, olupholisa ngaphandle kwesistimu ye-vacuum c

Ugqinsi lwemikhiqizo yohlobo lwe-TF luyi-600 mm.

Ubukhulu bemikhiqizo ye-TZ ubukhulu bungu-1000 mm.
